System and data requirements

This page details the data and system requirements and the setup for running ISTOCSY.

System requirements

ISTOCSY runs in Python.

To see the list of required libraries see setup.py

Data requirements

ISTOCSY can work with data input in one of two ways; either in csv file format; or as an nPYc dataset object.

Format 1: csv file format

If using the csv file format, two csv files are required.

  1. intensity data file: this file should contain numerical data only, of ns*nv dimensions, where ns is the number of samples (rows in the matrix) and nv the number of variables (columns in the matrix) i.e., the intensities of nv features across ns samples.
  2. feature metadata file: as a minimum, this file should contain 3 columns and nv + 1 (header) rows. After the column headers, each row should give information on the corresponding variable in the intensity data file, and the 3 columns must consisit of ‘Feature Name’ (str) name of the feature; ‘Retention Time’ (number) feature retention time; ‘m/z’ (number) mass of the feature. Note the columns in the feature metadata must have these exact headers for the information to be extracted.

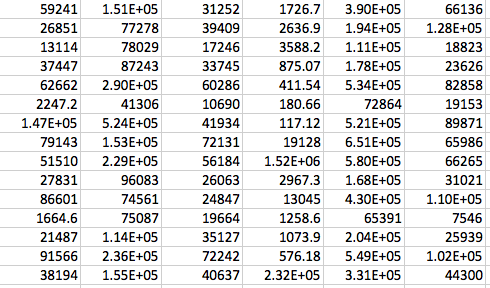

Example excerpt from the intensity data file:

intensity data file example

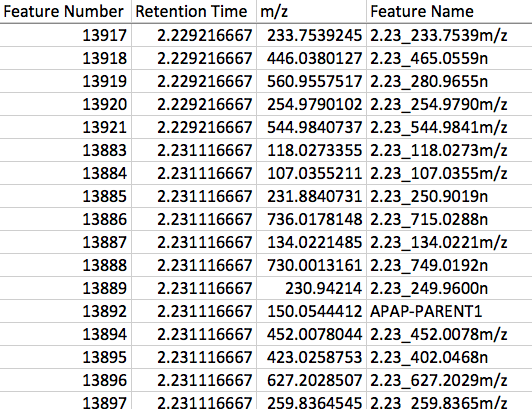

Example excerpt from the feature metadata file:

feature metadata file example

NOTE, here you can see that the entries in the ‘Feature Name’ column can consist of either a unique identifier (where feature identity is unknown), or of the assignment/annotation if this is known.

Format 2: nPYc dataset object format

If using the nPYc dataset object format only the object itself is required (for details see https://github.com/phenomecentre/nPYc-Toolbox)

In this case, the nPYc dataset object must be added as a argument when pyIstocsy is run:

import pyIstocsy
pyIstocsy.runISTOCSY(nPYcDataset=nPYcDatasetObject)
